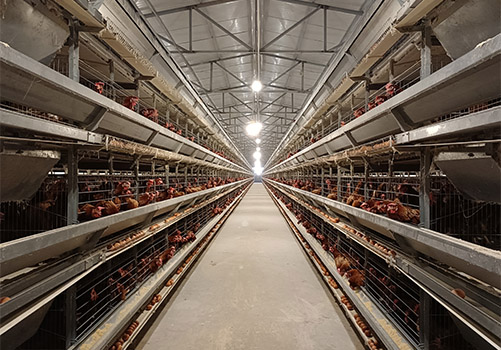

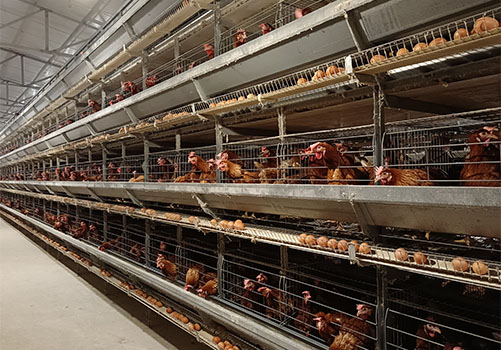

“H” Type Layer Cage System

Automatic layer cage systems consist of :

√ Automatic feeding machine

√ Automatic drinking lines

√ Automatic manure cleaning system

√ Automatic egg collecting system

√ Smart climate control system

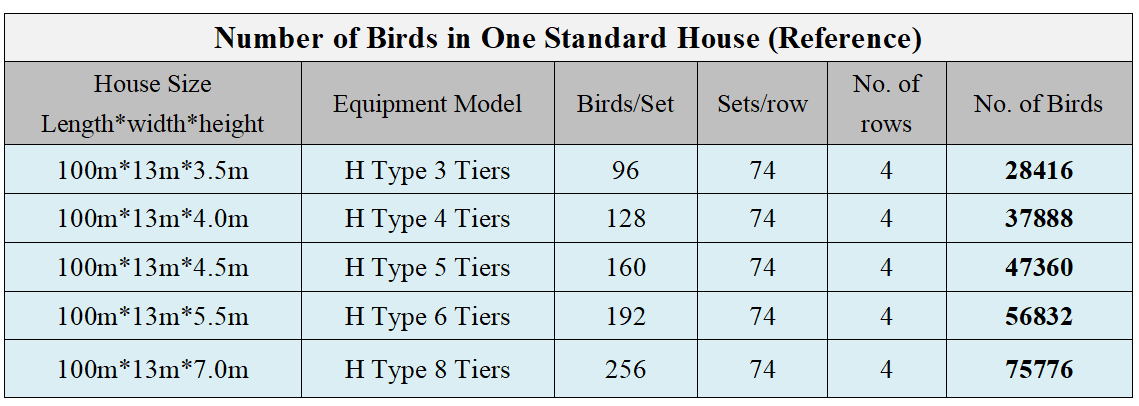

√ Recommended number of laying hens: 30,000 to 80,000/ house

Product Details

Material of cages Galvanized steel wires

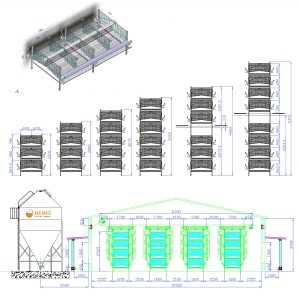

Tiers of cages

3 to 8 tiers

Space for each bird

450cm²



Raising System

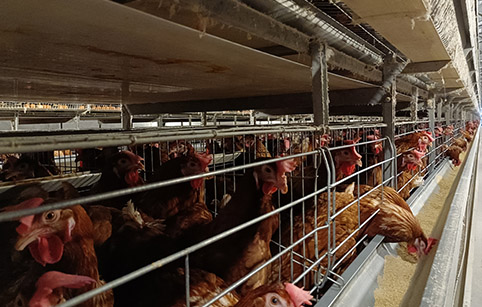

  • Feeding Trough

    Feeding Trough

    ● The main feed line can work automatically. Feed will be dispensed evenly in the feed trough.
    ● V-shaped feed trough may avoid “feed left at edge” to prevent the feed from accumulating and mildewing.

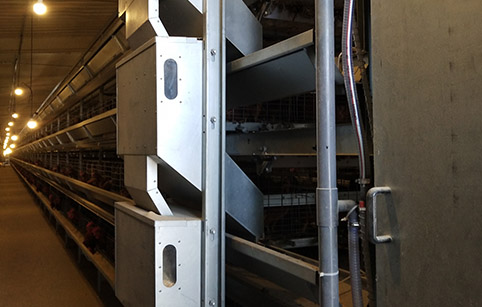

  • Feeding System

    Feeding System

    ● The magnetic end device can effectively clean the accumulated feed to avoid mildew, ensure birds healthy and save labour.
    ● Proven design and stable running can prevent maintenance for the most part.

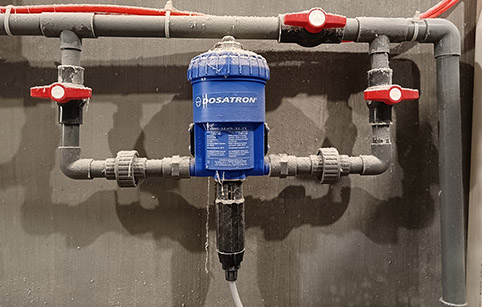

  • Drinking Front Unit

    Drinking Front Unit

    ● Water front kit: It includes Dosatron medicine doser, high quality filter, pressure-control valve, and electronic water meter to record water consumption.
    ● Pressure regulator: Water pressure in the drinking line can be adjusted by turning the knob under the regulator. When you want to rinse the drinking line, just turn to “flush” position, then water will be forced through the pipe at high pressure.

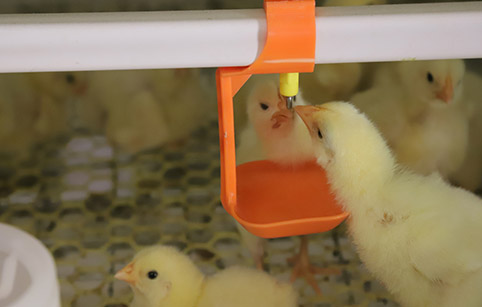

  • Drinking Water System

    Drinking Water System

    ● Drinking line: Layer cage system is equipped with a V-shaped water trough. The nipple drinker is double-sealing, which will ensure no water leakage.
    ● Optional alarm system will give an alarm whenever there is no water at the end of drinking line.
    ● Water flow-rate of nipple drinker is 40-50ml/min, which can meet the drinking demand of layers at the same time keep the manure dry.

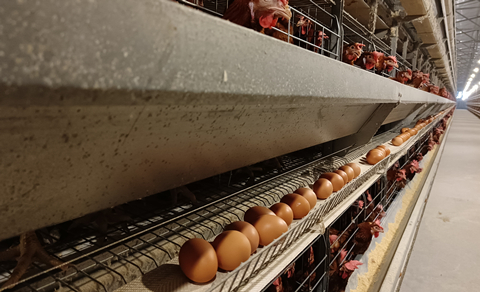

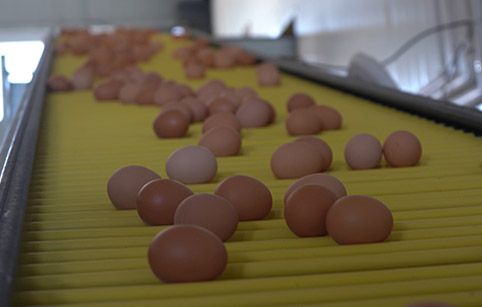

  • Egg Collecting System

    Egg Collecting System

    ● Lower broken egg ratio given the proven design and precision manufacturing.
    ● Optional egg saving wire ensures that eggs will roll smoothly to the longitudinal belt conveyor without collision with each other.
    ● Simple structure ensures stable running and maintenance-free.
    ● High quality PP egg belt (woven or perforated belt), low extension rate, little contraction or expansion caused by changing temperature.

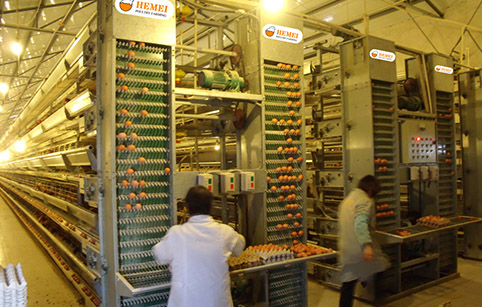

  • Egg Conveying System

    Egg Conveying System

    ● Transverse egg conveying system can be chosen. All eggs will be delivered to the egg warehouse for egg collection and packing.
    ● This can save labor cost and reduce the contact of workers with birds.

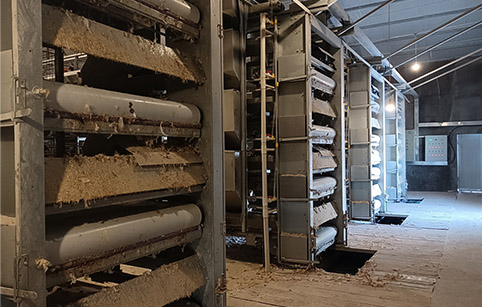

  • Manure Cleaning System

    Manure Cleaning System

    ● High efficiency motor ensures the belt transmission stable and reliable.
    ● Rubber-coated driving roller and partial rubber-coated tension-roller make sure that manure will be cleared away from belt and no slippery of belt.

    ● The two sides of conveyor belt support is a little higher, prevent the manure from spilling out.
    ● High precision products can ensure that manure belt will not deviate from the right position.

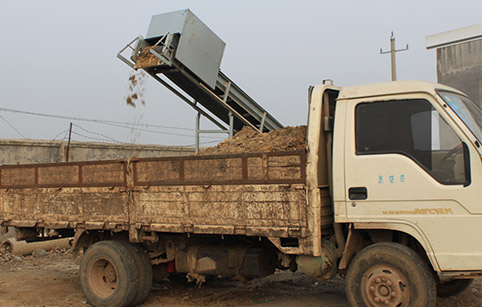

  • Manure Conveying System

    Manure Conveying System

    ● Entirely galvanized steel frame can provide better anti-rust performance outside the poultry house.
    ● High quality rubber manure belt ensures maintenance-free.
    ● Proven design and reliable running prevents the manure from dropping on ground.
    ● Reduced labor cost and trouble-free.
