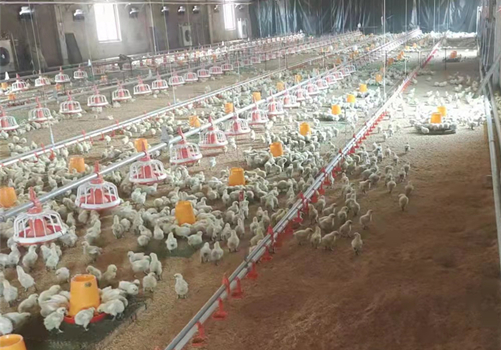

Broiler Floor Management System

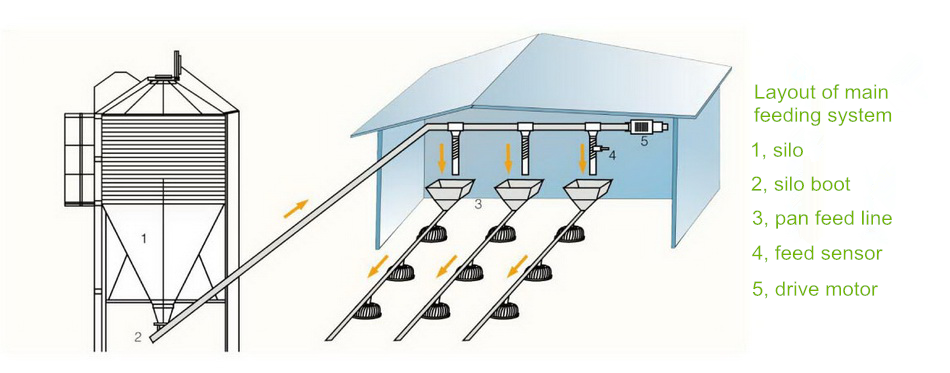

Broiler floor management system consists of:

√ Automatic feeding line

√ Automatic drinking line

√ Automatic ventilation and cooling pad systems

√ Recommended number of broilers: 10,000 to 30,000/ house

Product Details

Equipment type On floor
Feeding line specification Steel feed tube+feed conveying auger+feed pan
Drinking line specification 3m PVC drinking line with 15 nipple drinkers

Raising System

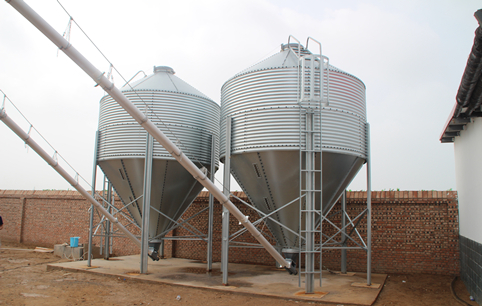

  • Feed Bin

    Feed Bin

    ● Feed bin material is 275g/㎡ galvanized sheet.
    ● Various capacity of feed bin is available.
    ● Tight connection of roof sheet and wall ring sheet ensures good sealing property.
    ● Feed loading machine has high feed loading efficiency.

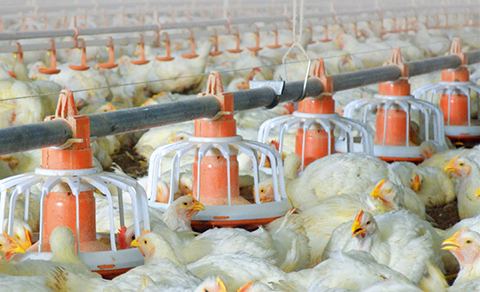

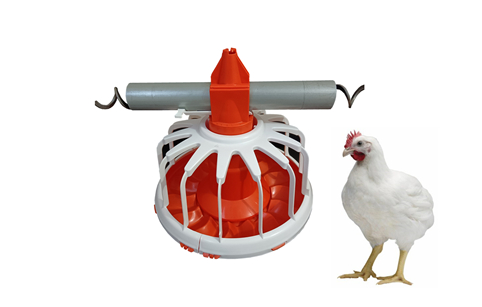

  • Feed Pan System

    Feed Pan System

    ● Feed pan material: 100% PP. Antioxidant is applied to enhance its quality.
    ● The slide shut-off is used for adjusting feed drop hole on feed pipe from completely open to completely closed.
    ● Feed amount can be adjusted accurately in a simple and fast manner.
    ● The pan dish can be dismantled and used for feeding day-old chicks.
    ● Conveying auger is from South Africa.
    ● Steel feed tube diameter: 45mm
    ● Material of feed tube: Galvanized steel tube 275g/m2.
    ● Maximum length of feeding line should be less than 120m.

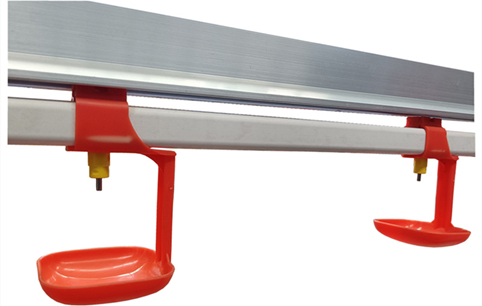

  • Drinking Line

    Drinking Line

    ● 360° side action triggering, easy access to water.
    ● No O-rings, seals or steel balls is used. Fewer parts reduce problem risks.
    ● Little strength is needed to touch the triggering pin. It’s easy for day old chick to get water.
    ● It’s easy to clean the nipples if there is congestion after medicine is added into the water line.
    ● When chicks get older, the side action strength is bigger, then they can have more water. In this way chicks can get sufficient water at different age.
    ● The nipple drinker is installed on square water pipe. It’s easy to install and replace the drinkers. Meanwhile, square water pipe can keep the nipple drinker in vertical position.
    ● Water flow rate can be customized to meet the demands of your flock.
