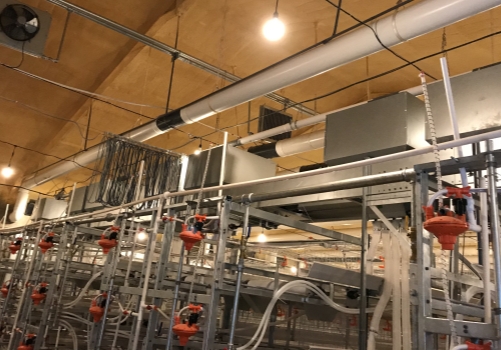

Manual Harvesting Broiler Cage Systems

Automatic broiler cage systems consist of:

√ Automatic feeding machine

√ Automatic drinking lines

√ Automatic manure cleaning system

√ Smart climate control system

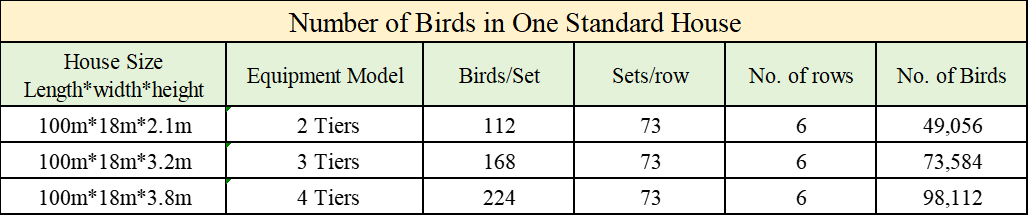

√ Recommended number of broilers: 50,000 to 100,000/ house

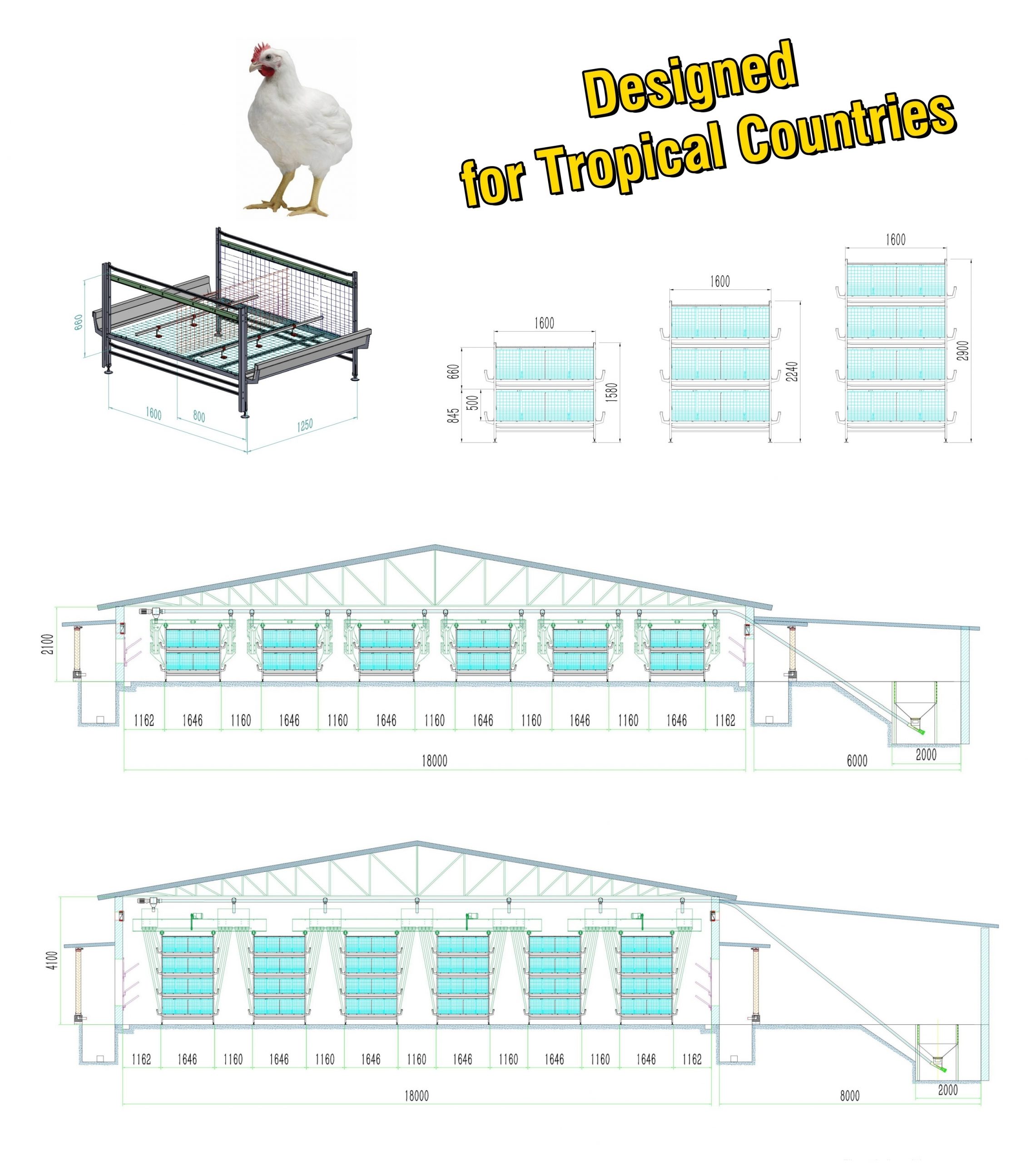

Product Details

Compartment  length 1.25m
Compartment width1.6 1.6m
Compartment height 0.5m

Raising System

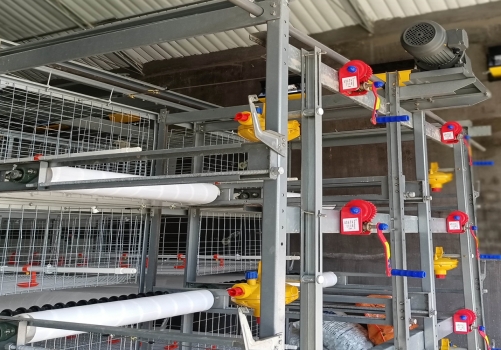

  • Feeding System

    Feeding System

    ● The main feeding line (PVC or steel tube) will deliver the feed by means of a conveying auger, be it powder or pellets.
    ● Feed bin is made of high quality galvanized sheet. Proven design ensures easy operation and maintenance. Various capacity of feed bins are available.
    ● Feed will be dispensed evenly into the feed trough, which is essential to uniformity of broiler weight.

  • Drinking System

    Drinking System

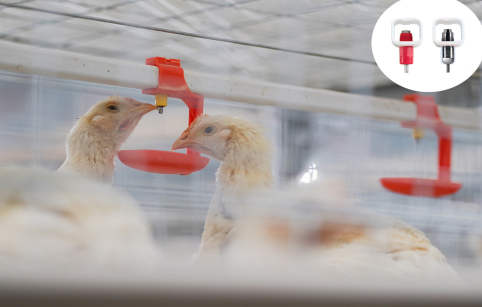

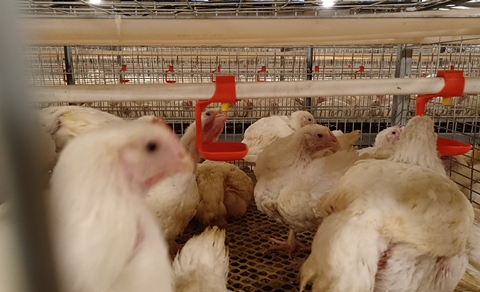

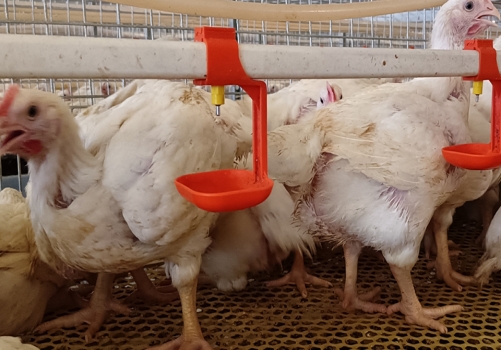

    ● Easy access to water even for day-old chicks is very important. HEMEI nipple drinker can provide clean and reliable water to your flock.
    ● Water flow-rate of nipple drinker is 80-100ml/min by side-action triggering, which can meet the water demand of broilers while keep manure dry. The drop-collecting cup under the nipple drinker is recommended.

  • Manure Cleaning System

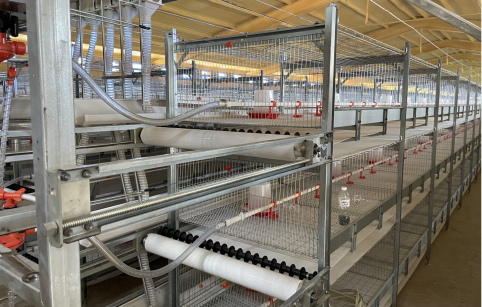

    Manure Cleaning System

    ● Polypropylene belt thickness can be 1.0mm, 1.1mm or 1.2mm depending on the length of house.
    ● Rubber-coated driving roller and partial rubber-coated tension-roller will ensure no slippery or deviation of belt.
    ● The two edges of conveying belt is a little higher, which will prevent the manure from falling out at both edges of belt.

  • Manure Conveying System

    Manure Conveying System

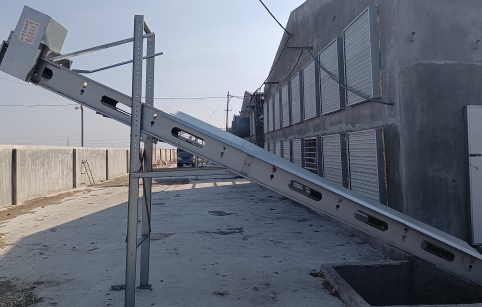

    ● Manure will be collected and conveyed to a transverse belt conveyor at the rearing side of house, then will be sent to a truck directly by a slant conveyor.
    ● PVC manure conveying belt, long service life.
