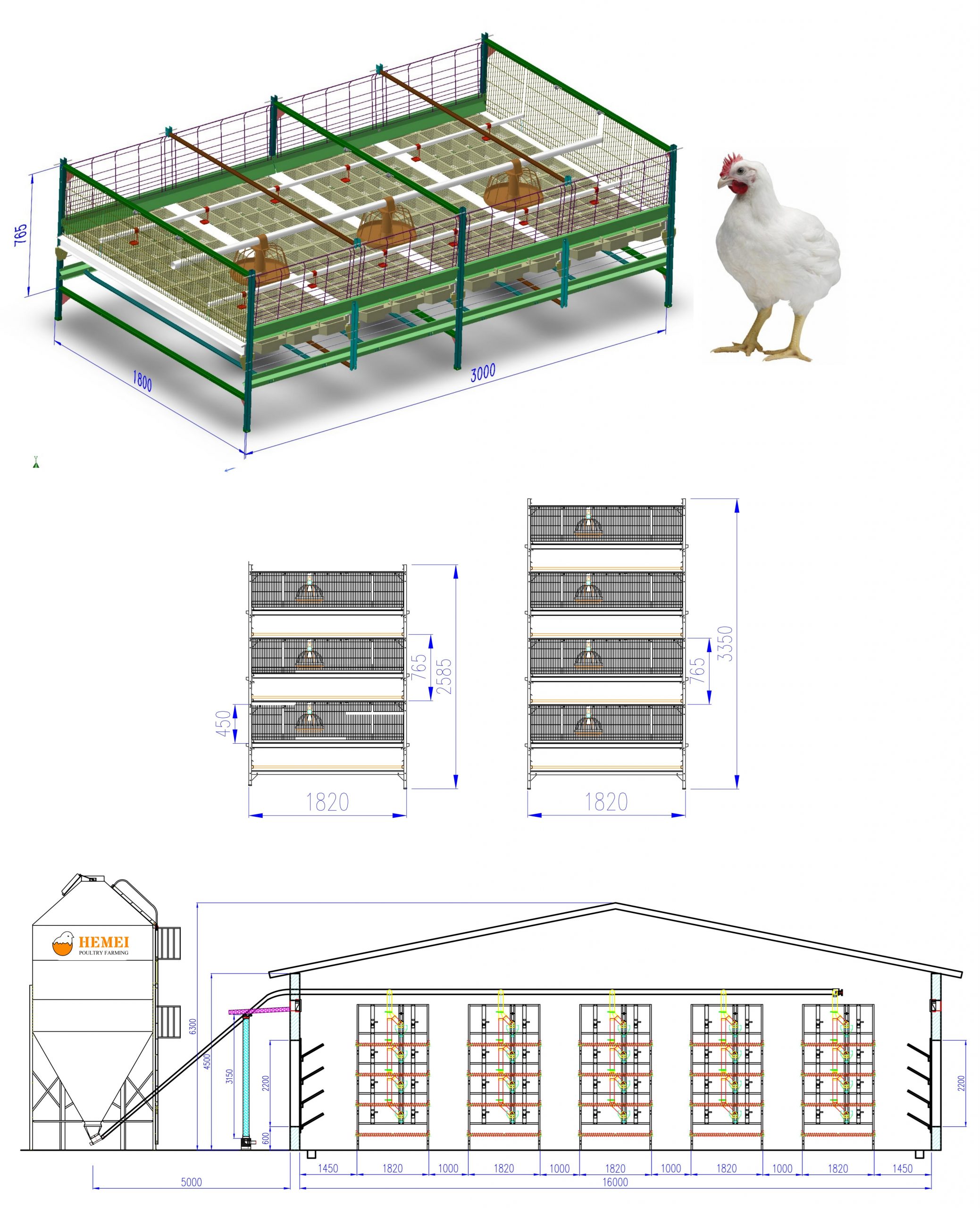

Broiler Cage System

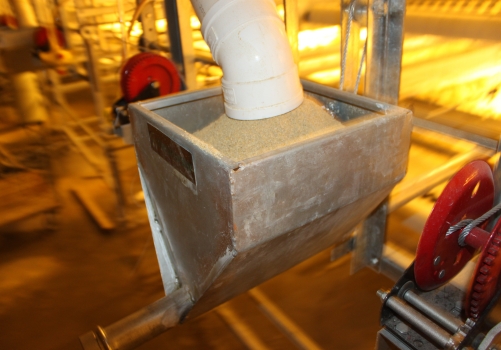

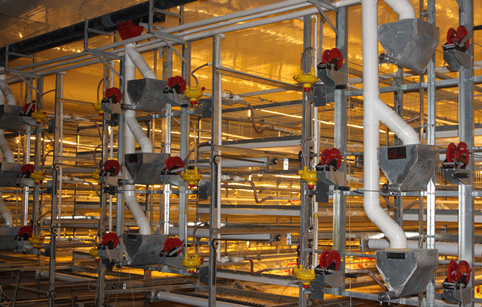

● Feed is delivered by the conveying auger automatically and smoothly.

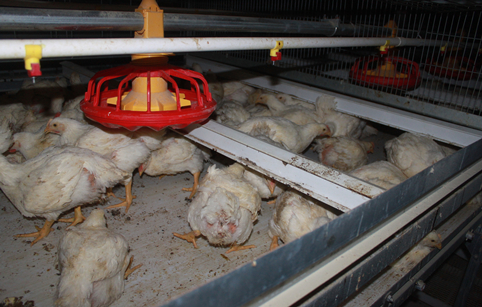

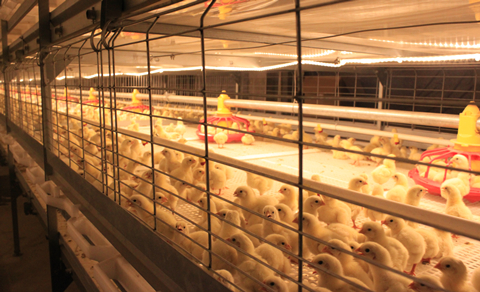

● Feeder pan can provide feed to broilers from 1-day old till broilers are ready for slaughter. The design of feeder pan can provide better feed conversion ratio.
● At each tier two or three feeder pans can be chosen in one cage unit depending on number of broilers.
● Two main feeding lines can be chosen to increase feed conveying speed.
● Different capacity of feed bins are available.

● Square PVC pipe equipped with nipple drinkers will provide water for broilers. At each tier of cage unit, there are 12 nipple drinkers installed on two paralleled PVC pipes.

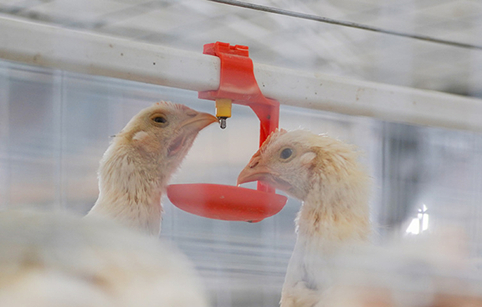

● There is a cup under each nipple drinker. It will collect the water drops and help to keep the manure dry.
● Water pressure regulator will provide proper water pressure in the drinking line at different stage of broiler’s life.
● Height of the complete drinking line can be adjusted according to the growing size of chickens.
● Automatic flushing system can be used to clean the drinking line easily.

● Belt type manure conveying system will automatically send the manure to truck.
● High quality manure conveying belt ensures long service life and free of troubles.
● Belt material: PVC or rubber
● The frame of transverse manure conveyor can be galvanized (after being welded) to have the best anti-corrosion performance.
● Manure will not fall at the both edges of belt because of the bending support.

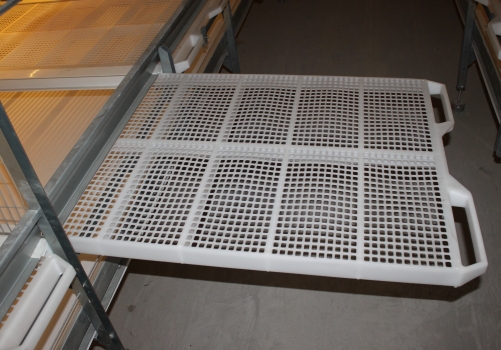

● The floor is made of polypropylene. It has a net structure, which makes the surface kind of flexible. The design aims to protect the claw quality.
● The beam is made of PVC. The structure ensures it has good load-bearing performance.

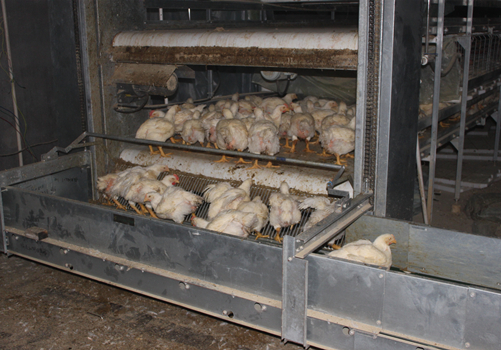

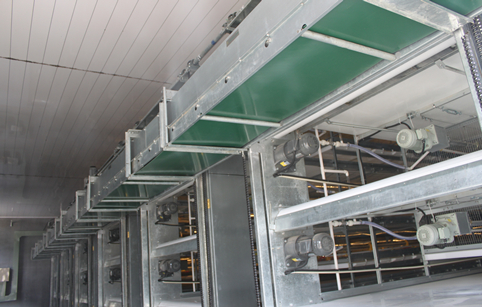

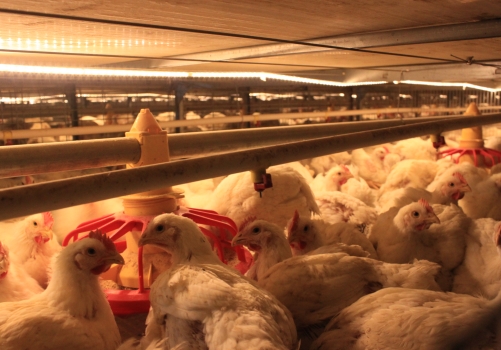

● When broilers are ready for slaughter, the floor can be drawn out of the cage. Then broilers will fall on the manure belt and be conveyed to a transverse belt conveyor which will send the broilers out of the house. Operators will put the broilers into boxes manually.
● Broilers can be collected from cages efficiently.
